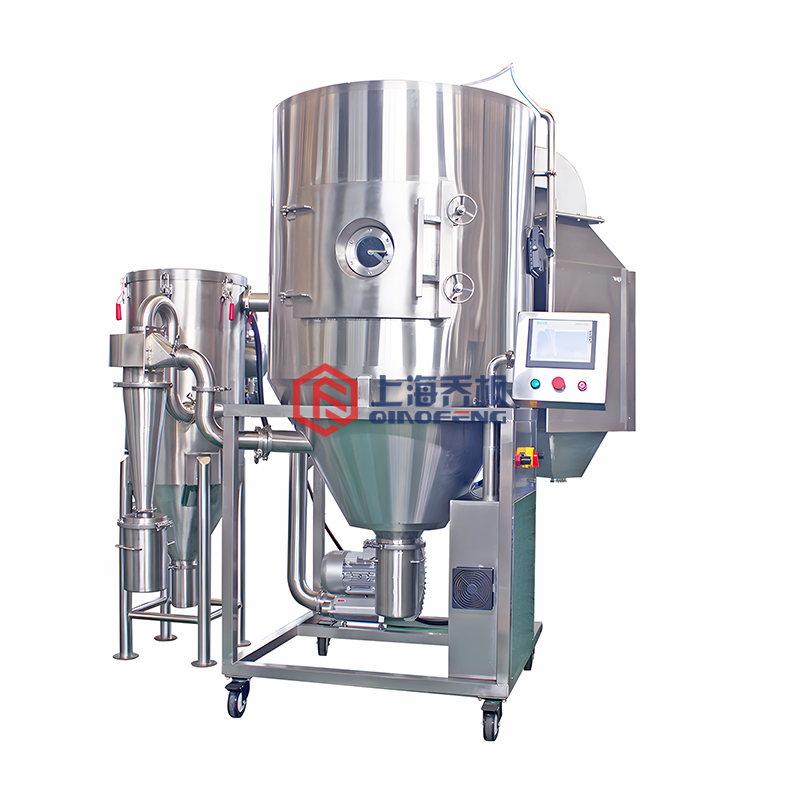

Airflow spray dryer QFN-CX-5The spray dryer is mainly suitable for the production of micro particle powder in laboratories of universities, research institutes and food pharmaceutical and chemical enterprises, and is widely applicable to all solutions, such as emulsion and suspension.
It is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Because the material is only sprayed into a fog when the high temperature and instantaneous heating, so these active materials still maintain its active ingredients after drying.
Multiple application areas:
Beverages, spices and colors, milk, egg products, plant and vegetable extracts, pharmaceutically synthesized thermosensitive plastics, polymers and resins, aromatics, blood products, ceramics and superconducting biochemical products, dye soaps and detergents, food, adhesives, oxides, bone meal and tooth powder, etc.
The equipment uses the principle of water evaporation to remove the solvent contained in the solution. In particular, it is suitable for the powder preparation industry of most heat sensitive materials. The equipment is equipped with a bag type dust collector, which is safe, environmental protection and reliable.
Two, main characteristics:
1. Choose the air atomizer developed by Qiao Feng. Compact structure;
2. Choose the advanced optical observation window to match the lighting lamp to observe the production process.
3, adopt bracket, the main body material is SUS304 stainless steel, durable.
4, the top of the drying tower adopts the high-performance spiral case structure, and the natural ventilation is more stable.
5, the use of electric heating source, instantaneous heating, less heat loss, production efficiency can be greatly improved.
6. Rapid assembly of pipeline, easy installation, convenient cleaning, remove stains without dead ends;
7, independent power cabinet, electric control system supports non standard customization; (optional SIEMENS)
8, one button boot, support 380V power protection, security is guaranteed;
9, the new 4 core bag filter, imported bag core, with high toughness skeleton, the dust removal effect is better.
10. Transport system, atomization system, heating system, electronic control system, dust removal system are modular design, fast installation, good sealing.
Three, product parameters

Note: water evaporation is based on inlet temperature 250 C.
Four, optional:
1, electric / pneumatic jacking structure, can achieve the drying tower top cover ascending and descending operation. Effective save time;
2. Optional tower bottom shaking device can effectively clean up or collect accumulated materials at the bottom of the tower.
3. Imported brand electronic control system (such as Siemens) can be selected, which has strong control ability and supports online upgrade of program.
4. Optional temperature and humidity sensor, real-time humidity detection device, intuitively reflect the humidity changes in the drying process; gas temperature and humidity sampling point set in the flue gas system and dust recovery device, gas directly conveyed to the probe sampling analysis, can automatically carry out on-line sampling.
5, optional tower wall blowing device to clean up the material in the tower.
6. Rotor flowmeter can be selected.
7, other gas interfaces (such as nitrogen) can be reserved.
8. Dry air can be connected to improve drying efficiency.
